FREQUENCY
4500r/min
1200W
IP66
1.800W DC brushless permanent magnet synchronous motor, with energy efficiency ratio of up to 92%.
2.18V low-voltage motor is safer and away from the dangers of 380V high-voltage motors.
3. Low noise, lighter, and no cables make the operation site unrestrained.
4. Higher efficiency! 12000RPM/15500RPM two speeds to choose from

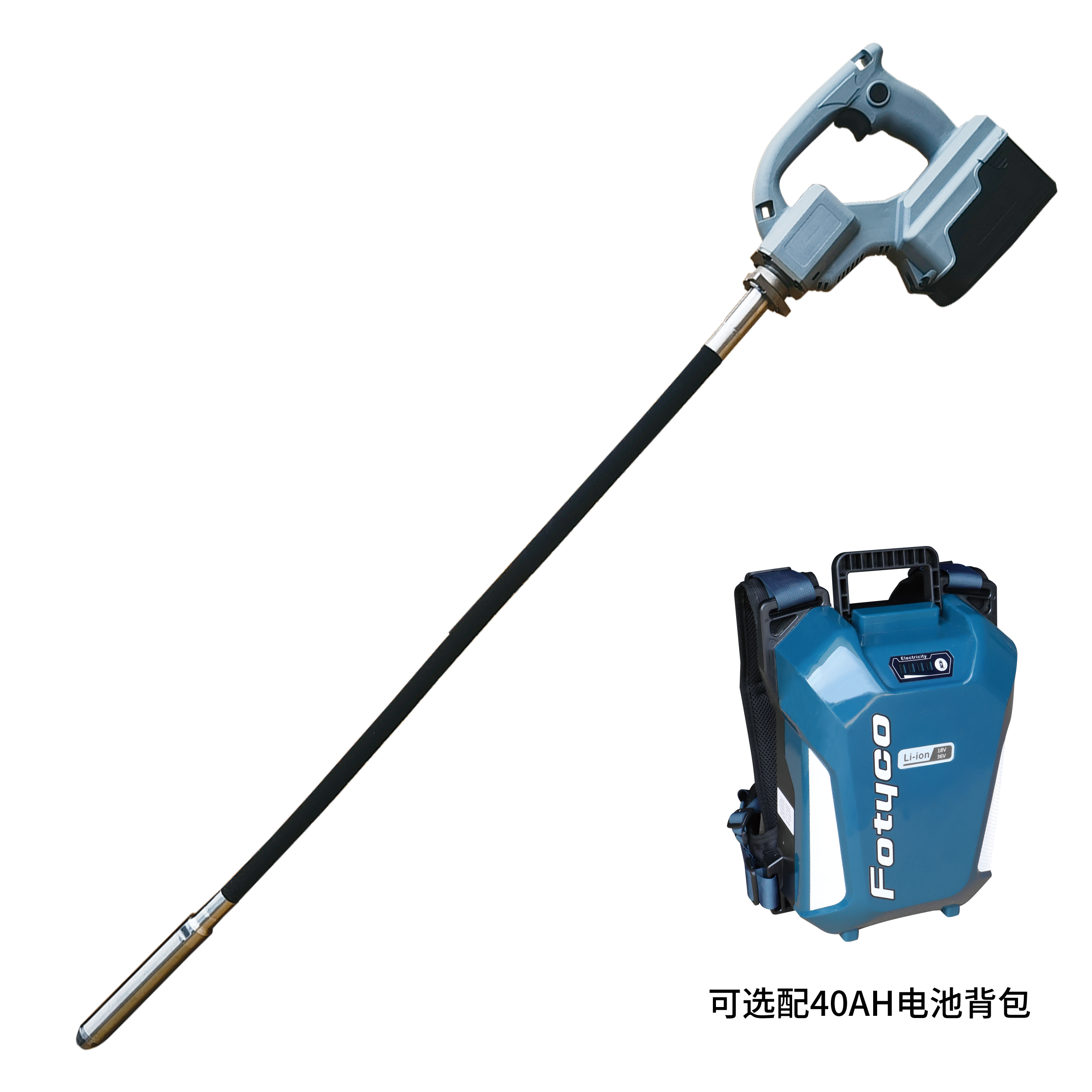

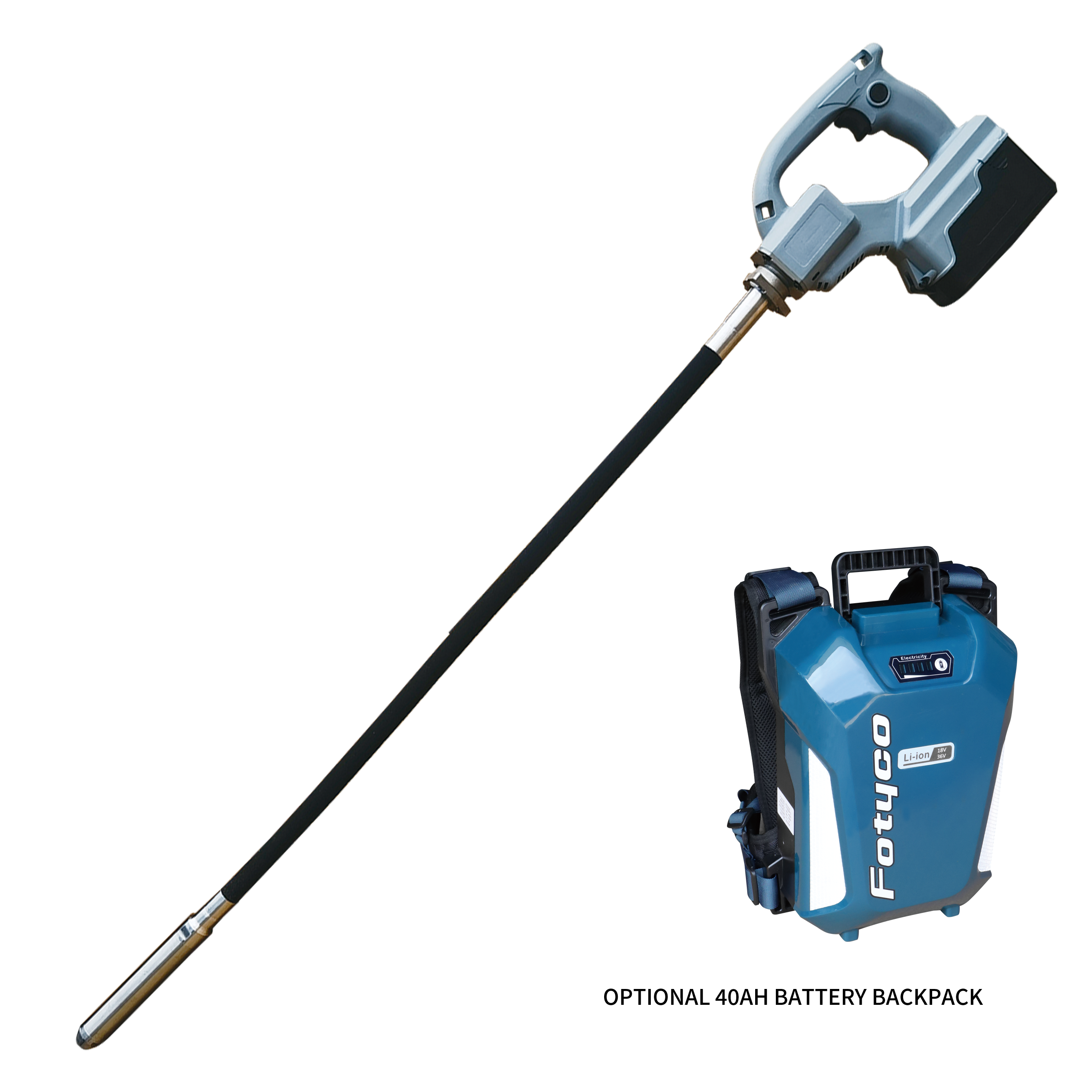

5. No anxiety about battery life, with a continuous working time of 90 minutes for one battery (optional 40Ah battery backpack can last up to 6 hours)
6. Using fast charging technology, it can be fully charged in 60 minutes.
| Entry Name | Technical Parameter | ||||
| Model | FTC5220 | ||||
Technical Parameters of Vibrator | Maximum Output Power（W） | 800 | |||
| Vibration Per Minute（VPM） | Super Mode: 15500; Normal Mode: 12000 | ||||
| Full Battery Workload | Using a 35mm-1.7m rod, Ultra Strong Mode: 60 min | ||||
| Using a 35mm-1.7m rod, Normal Mode: 120 min | |||||
| Electrical Machinery | DC Brushless Permanent Magnet Synchronous Motor | ||||
| Battery | 18V-10AH Lithium Battery | ||||
| Net Weight | 2.1kg (Including BL18100 Battery) | ||||
| Model | 28 | 35 | 40 | ||
| Vibration Body | Vibration Head | Head Diameter (mm) | 28 | 35 | 40 |
| Head Length(mm) | 206 | 196 | 196 | ||
| Head Hardness | 42-48° | ||||
| Full Amplitude(mm) | 1.45 | 1.65 | 1.8 | ||
| Half Amplitude(mm) | 0.725 | 0.825 | 0.9 | ||
| Vibration Frequency | 200/260 | ||||
| Vibration Speed | 12000/15500 | ||||
| Excitation Force | 768N/1610N/2320N | ||||
Transmission Hoses and Flexible Shafts | Outer Diameter of Hose(mm) | 25 | |||
| Inner Diameter of Hose(mm) | 11.6 | ||||
| Flexible Shaft Diameter(mm) | 8 | ||||
Minimum Bending Radius of Hoses(mm) | ≤R200 | ||||
| Vibration Body | Body Length(m) | 1.2/1.5/2.4 | |||
| Body Weight(Kg) | 2.4/2.75/3.9 | 2.7/3.12/4.3 | 3.2/3.7/4.8 | ||
| Hand Vibration Value(m/s2) | ≤5.5 | ||||
Noise Value (Measured Outside 7M) (dB) | ≤72 | ||||
Temperature Rise (deg ℃) (Run for 3 min) | ≤40 | ||||
Vibration Diameter (Range)(mm) | 336 | 420 | 500 | ||
| Service Life(H) | ≥300 | ||||
| Ingress Protection | IP67 | ||||
